Off Road Trailer For ATV Hunting With Lids

XTM OD-09 is an Dual axle ATV Garden trailer build based on OD-10 trailer with heavy duty but light weight, wide flotation tyres and high ground clearance making them ideal for off road use.

OD-09 special with lids to prevent any muds and dusty get into the trailer.
Removable front & rear tail gate and easy central tipping base further enhance their cargo handling capability.
Suitable for a variety of uses including: Forestry, Farming, Garden, Equestrian, ATV&UTV tow behind.
Trailer with a 800kgs load capacity on a regular/daily basis.
Trailer lids with a 150kgs load capacity on a regular/daily basis.
Additional bracing struts/ side support, Galvanised steel mesh cage and jack, spare tyre also optional.
Powder coating (colors optional), plating or galvanizing Surface Treatment optional.


Key Features:

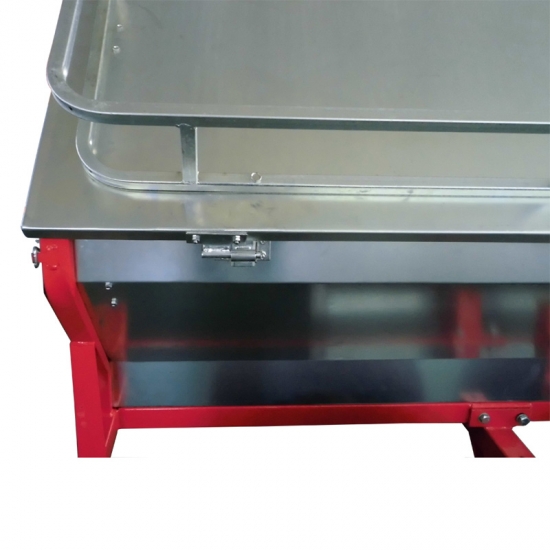

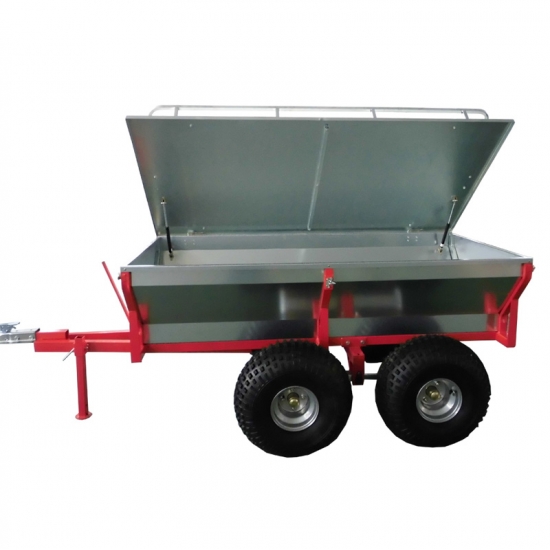

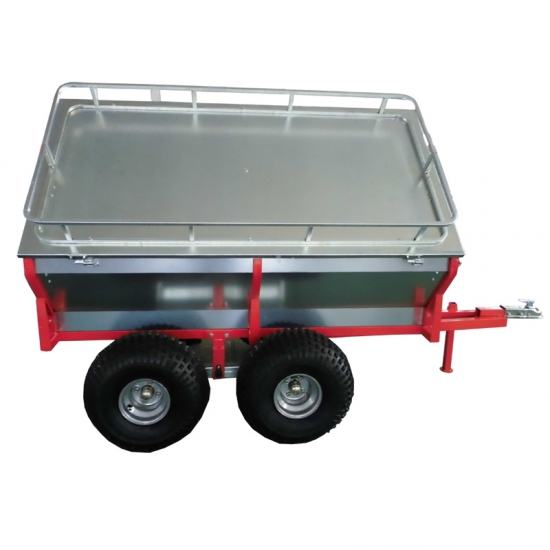

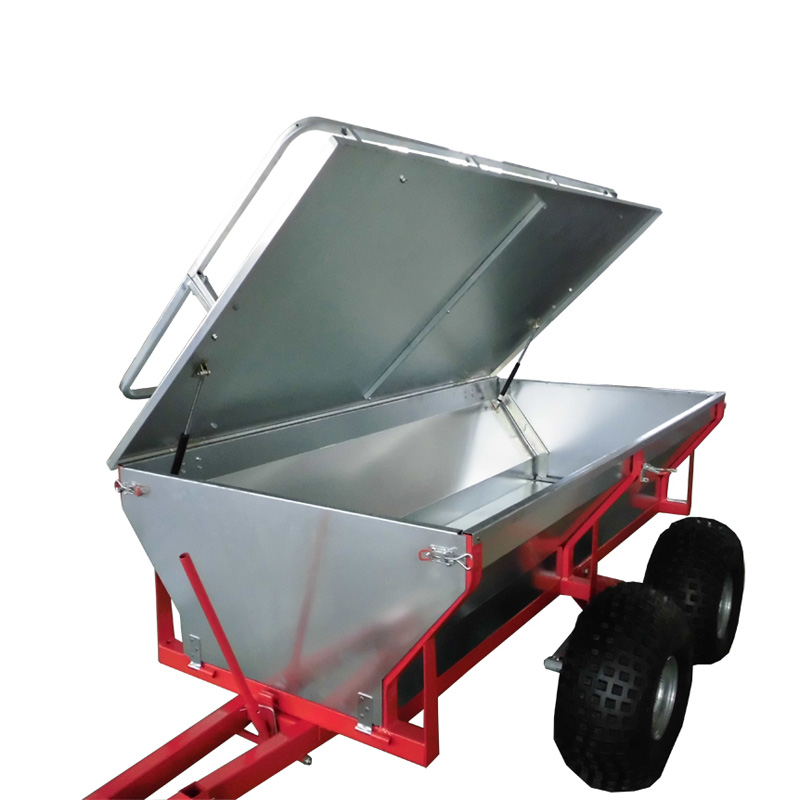

Lid on top of trailer box
Lid load capacity 150 kgs
Tandem axle atv garden tipping trailer
1.5mm galvanized sheet
Box size: 1500x950x450mm
Easy Lift Tipping
Tail Gate Removable - At Front And Back
Off road use only

.

The Specification About Off Road Trailer

Model No.: XTM-OD-09
Material: Q235
Box Size: 2000mm×1000x450mm
Box Volume: 0.7m³

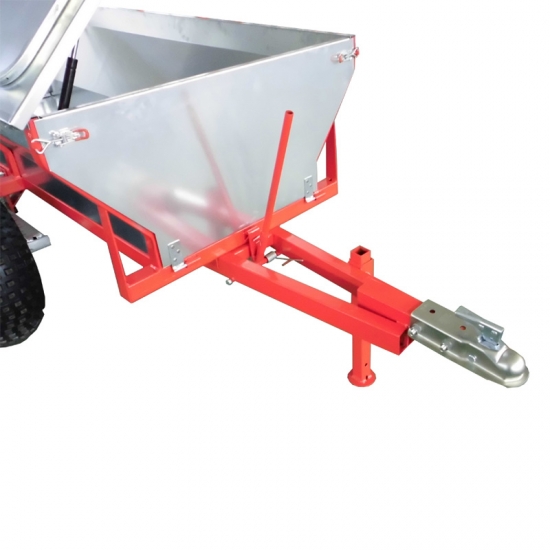

Draw Bar Length: 950mm
Draw Bar Materia: 60mm×40mm×2.5mm
Box Material: 1.5mm galvanized sheet
Net Weight: 186kgs
Load Capacity: 800kg
Tyre: 22×11-8(optional)
Surface Finish: Powder coating (colors optional), plating or galvanizing
Coupler: ø50mm, 2000kg
Packing: Bulk or iron frame, single cardboard packaging
Warranty Time: 12 months(not including tire)
