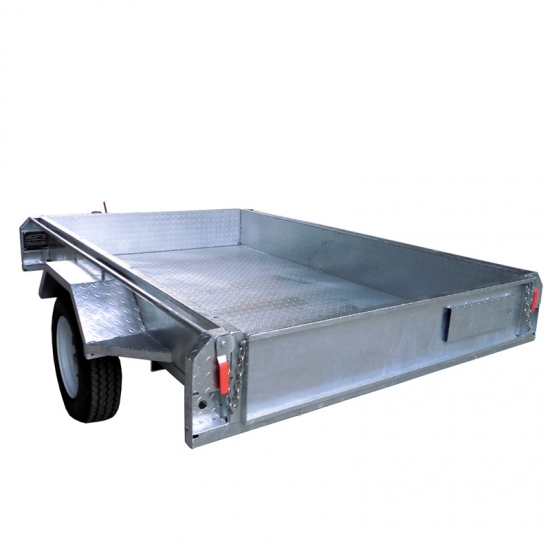

5x8 Galvanised Box Trailer
XTM ND-64 5x8 trailer is an ideal trailer for the family chores and trips. Perfect for jobs around the home and garden as well as local trips and camping/driving holidays with the family. Capable of carrying a heavy load. Jockey wheel, mud flaps, led lights included!
ND-64 trailer process with Hot-dip galvanized surface treatment, make it more strong to Anti-corrosion.

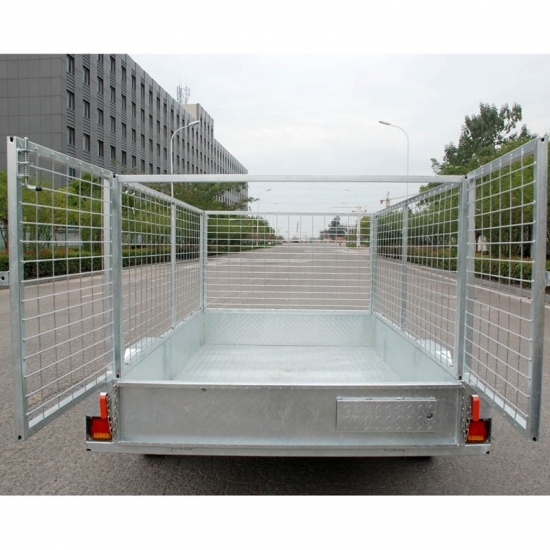

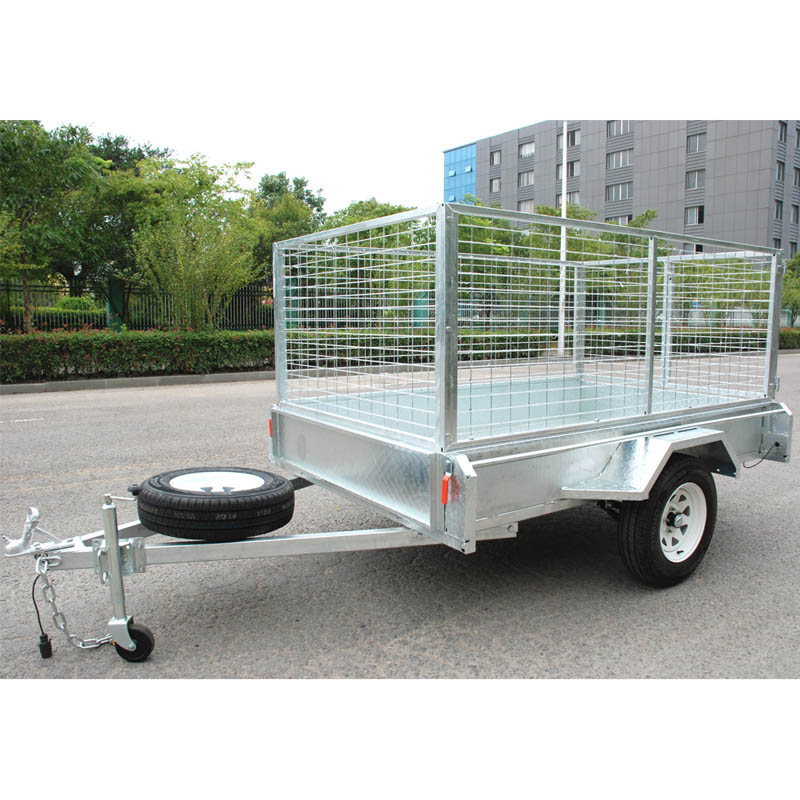

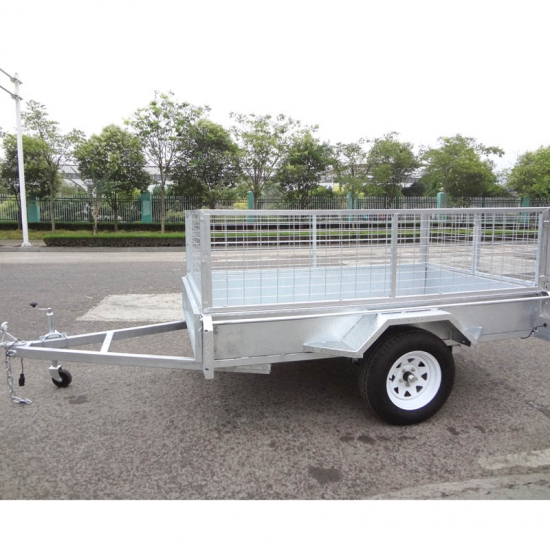

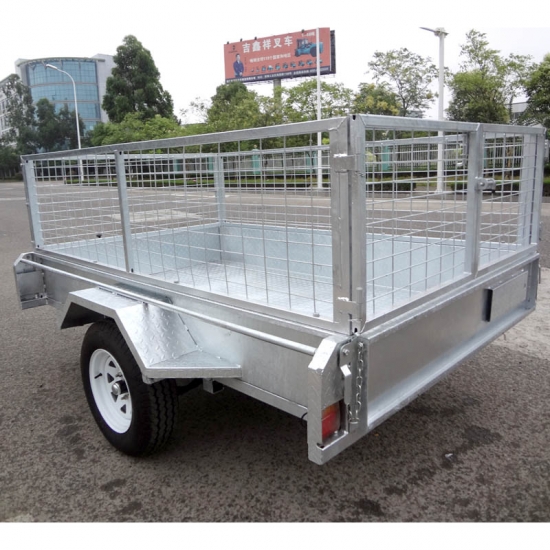

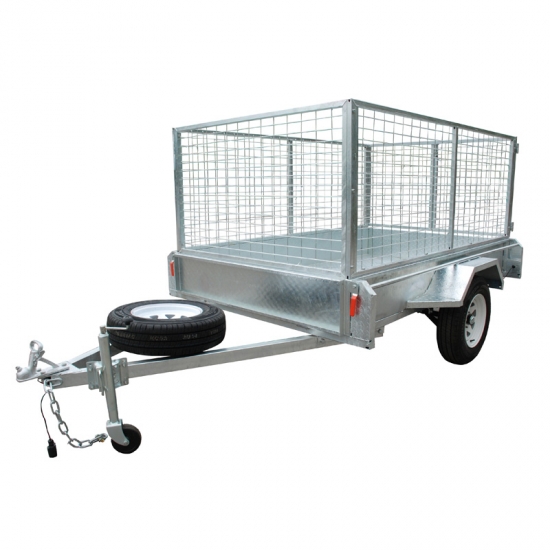

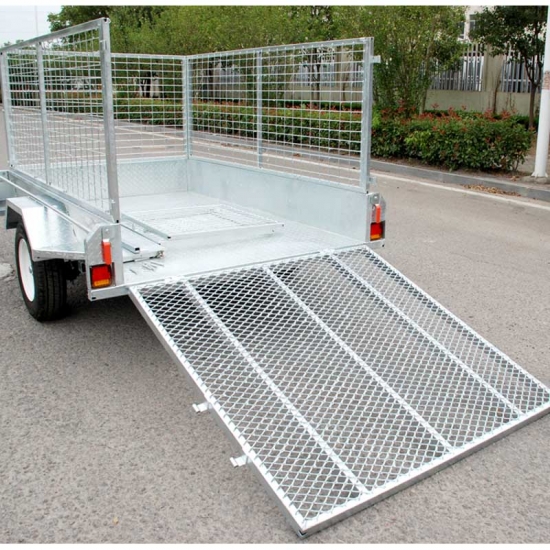

Mesh cage optional, with this cage, it can hold heavy, tall loads with ease, as well as providing much needed protection for your cargo. Also very easily removed at any time, converting them back to standard box trailers.
Key Features:
8x5 Galvanised Box Trailer
Hot dipped galvanised and fully welded
One piece plate cut, no joint
Heavy Duty Checker Plate, fully welded Body with 2.5mm Floor
Front & Rear opening Tailgates, both removable
Drawbar 70 x 50 x 3mm
Standard Heavy Duty Coupling and Safety Chain
5 Leaf Spring suspension
Ford Stud Pattern
LED Tail-lights
Optional Cage and Spare Wheel
Load capacity 750kg
The Specification About Galvanised Box Trailer
Model No.: XTM-ND-64
Classic Size: 2480mm×1500mm
Box Size: 2480mm×1595mm
Tailgate Height: 300mm or 350mm
Classic Material: 50mm×50mm×2.75mm
Tailgate Material: 1.8mm Checkered Plate
Floor Material: 2.5mm Checkered Plate
Draw Bar Size: 1200mm (straight distance from the coupler to the classic plate)
Draw Bar Material: 70mm×50mm×2.75mm
Spare Tire Rack: 50mm×30mm×2mm
Coupler: ø50mm 2000kg
Safety Chain: ø8mm or 10mm×600mm
Axle Tree: ø40mm Solid shaft or ø50mm×5mm Tube shaft or 50mm×50mm×5mm Square tube axis
Hub: No brakes (pitch 5 × 114.3)
Tire: 185R14c(optional)
Wheels: 14×5.5(pitch 5×114.3 white)
Tying rod: ø25mm×2.0mm 1pc for both left and right
Coating Hot dip galvanization
Features: Tiltable or tilting
Load Capacity: 750kg
Net Weight: 232kgs
Suspension: 5 leaf monaural slide 7mm × 50mm leaf spring
Bearing L68149/10 & LM12749/10
Taillight: LED with license plate light or install LEG measuring light, plug 7-pin flat plug or round plug
Reflector Plate Red / yellow / white each colour with 2pcs (stick)
Triangle pedals 2pcs for both left and right
